How to Never Forget Deep Q-Networks: Memory Palaces Meet Reinforcement Learning

Training AI Agents to Master Video Games

Continuing my previous post, where I taught how to train a virtual robot to play a game:

Video Games and Reinforcement Learning

In the end of the post above, there were an exercise to solve the Taxi problem using the Q-Learning, so I decided to upgrade and use CNN (Convolutional Neural Networks) with Deep Q-Network as promised. We’ll train our agent in the Pong environment. Check the expected result:

Summary

1. DQN and Q-Learning

2. Application of DQN in solving the Pong environment

3. Drawing Table

4. Drawing Compass

5. Plumb Line

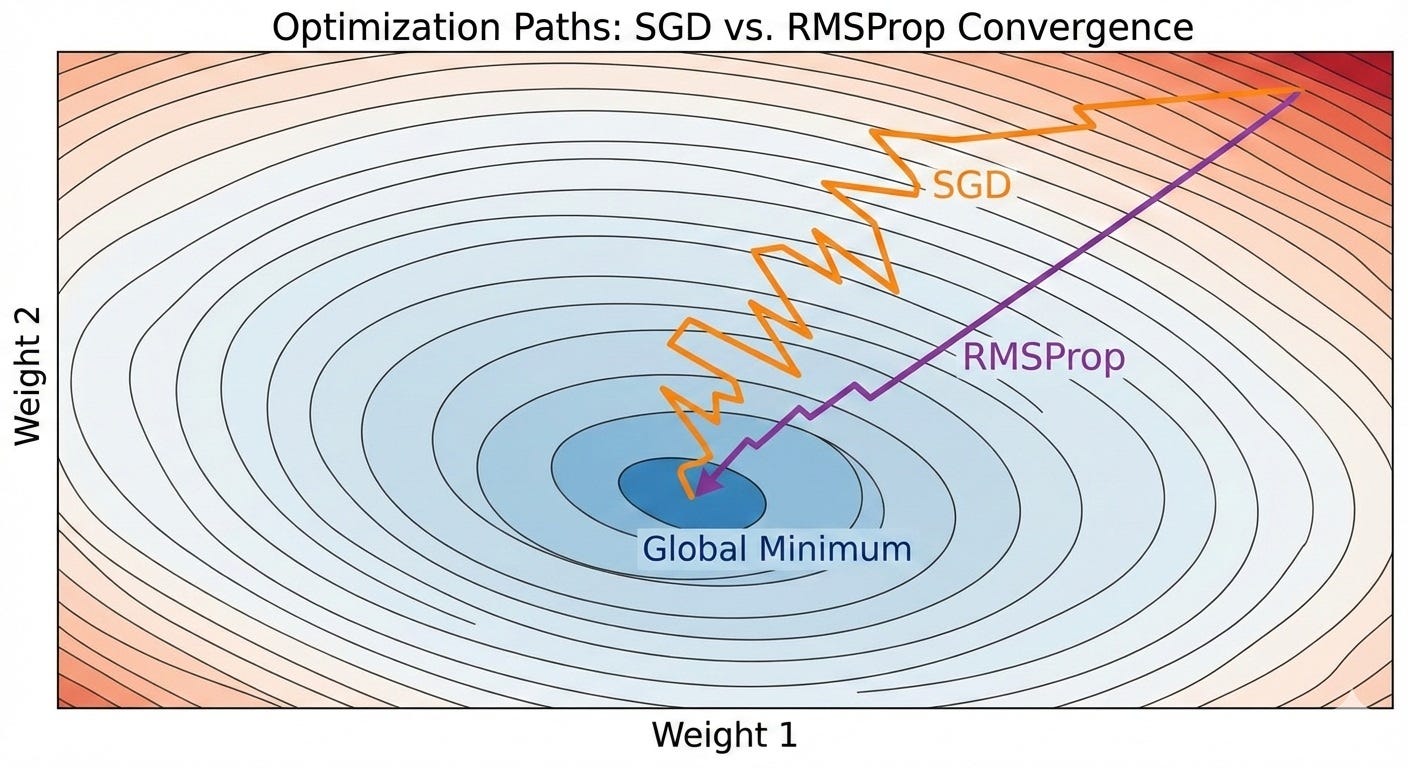

   1. More about optimization

   2. Details of PyTorch

6. Stone

7. Stone Shaper

8. Memory Palace of DQN in the memoryOS app

9. Conclusion

Sources

• Human-level control through deep reinforcement learning (paper)

• Practical AI with Python and Reinforcement Learning (paid)

• The Organic Chemistry Tutor (free)

Libraries

• Gymnasium

  • Pong - Gymnasium

  • Taxi - Gymnasium

• PyTorch

• Matplotlib

• NumPy

• Manim

  • ManimML extension

  • Both used to generate the explanation videos

• uv

  • I recommend, as it’s very fast to install and manage packages.

DQN and Q-Learning

The Q-Learning has a limitation of not scaling well to large spaces. If we would solve a problem like chess, we would need a Q-Table with an astronomically large number of entries, since each unique board configuration would represent a distinct state. Another problem is continuous state spaces (for example, 0.1 to 0.93), where one solution is to use binning to discretize values. But imagine that we have millions of states, and for each state, we have to divide the 1.0 into ten parts (for example, [0.1, 0.2], [0.2, 0.3], and so on). In DQN, this problem is solved more elegantly by using a neural network as a function approximator.

Application of DQN in solving the Pong environment

You can use Google Colab in VSCode, or follow the steps below to run locally in your machine:

Part of the requirements.txt:

pillow==11.3.0
torch==2.6.0+cu124
torchaudio==2.6.0+cu124
torchvision==0.21.0+cu124
gymnasium[accept-rom-license]==0.28.1
pygame==2.2.0
ale-py==0.11.2
matplotlib

Installation process:

pip install uv
uv venv --python 3.12
.venv\Scripts\activate
uv pip install -r requirements.txt --extra-index-url https://download.pytorch.org/whl/cu124 --index-url https://pypi.org/simple
uv pip install gymnasium[atari,accept-rom-license] ale-py
uv run python -c "import torch; print(torch.cuda.is_available())"

Execute jupyter notebook: uv run jupyter lab or uv run jupyter notebook

Make the imports below:

import os
import time
import glob
import torch
import random
import logging
import platform
import numpy as np
import gymnasium as gym
import matplotlib.pyplot as plt
import ale_py

from uuid import uuid4
from typing import NamedTuple, Tuple, Self
from gymnasium import Env
from torch import Tensor, optim, nn
from torch.nn import functional
from tqdm import tqdm

# Register Pong environment
gym.register_envs(ale_py)
logging.basicConfig(level=logging.INFO,  # or logging.DEBUG if you have problems
                    format='%(asctime)s - %(levelname)s - %(message)s')
%matplotlib inline

The method show_environment is implemented so that later we can see the rendered environment and the preprocessed state (fed to the model) side by side:

from IPython.display import clear_output, display


def get_visual_array(array, show_last_batch=True):
    # To debug the preprocessing, show in the next steps
    if isinstance(array, Tensor):
        if array.dim() == 4:  # [batch, channels, H, W]
            idx = -1 if show_last_batch else 0
            array = array[idx]
        if array.dim() == 3:  # [channels, H, W]
            array = array.permute(1, 2, 0)  # [H, W, channels]
        array = array.detach().cpu().numpy()
        return array, "gray"
    elif isinstance(array, np.ndarray):
        if array.ndim == 4:  # [batch, channels, H, W]
            idx = -1 if show_last_batch else 0
            array = array[idx][:,:,-1]
        if array.ndim == 3:  # [channels, H, W]
            array = array[:,:,-1]  # [H, W, channels]
        return array, "gray"

    return array, None

def imshow(array, cmap, idx_plot):
    ax = plt.subplot(idx_plot)
    ax.axis("off")
    ax.imshow(array, cmap=cmap)

def show_environment(render, preprocessed=None, show_last_batch=True):
    plt.axis("off")
    preprocessed, cmap = get_visual_array(preprocessed)
    if preprocessed is None:
        plt.imshow(render)
    else:
        imshow(render, None, 121)
        imshow(preprocessed, cmap, 122)
    plt.show()
    time.sleep(0.05)

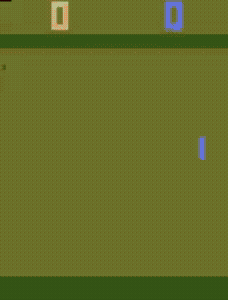

Just testing random actions to “feel” the environment

Action Space

Pong uses a discrete action space of size 6:

• 0: NOOP

• 1: FIRE

• 2: UP

  • In the doc is RIGHT

• 3: DOWN

  • In the doc is LEFT

• 4: RIGHTFIRE

• 5: LEFTFIRE

This corresponds to Discrete(6), but we’ll reduce to only 3:

• 0: NOOP

• 2: UP (RIGHT)

• 3: DOWN (LEFT)

Observation Space

The default observation returned by ALE/Pong-v5 is an RGB frame with:

In other words, the observation is a 210x160 RGB image with pixel values in the range [0, 255].

The visual state contains:

• the right paddle (controlled by the agent)

• the left paddle (controlled by the computer)

• the ball

• the top scoreboard region

Description

You control the right paddle and compete against an AI-controlled left paddle. Each player attempts to deflect the ball and score points by getting the ball past the opponent’s paddle.

Reference:

Pong – ALE

env_name = "PongNoFrameskip-v4"
env = gym.make(env_name,
               render_mode="rgb_array")
env.reset()

for step in range(50):
    show_environment(env.render())
    action = env.action_space.sample()
    state, reward, term, trunc, info = env.step(action)
    time.sleep(0.001)

    clear_output(wait=True)
    if term or trunc:
        env.reset()
        break

env.close()

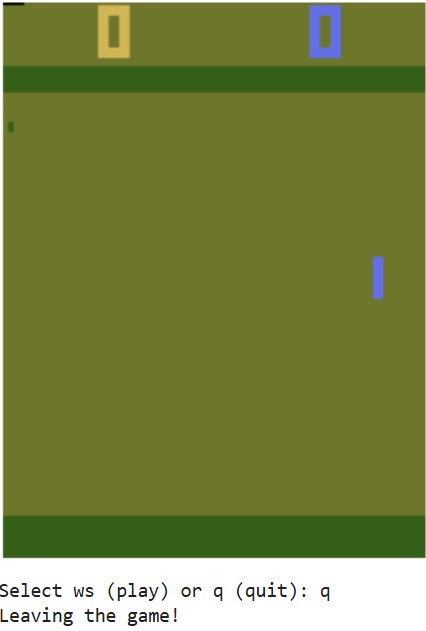

Manual game execution

Note: If it doesn’t work, try running the notebook with python -m notebook or use anaconda

def play():
    """
    Function to get the input and pass to the environment (in this case, you're the agent).
    """
    key = input("Select ws (play) or q (quit):")
    if 'w' == key:
        action = 2  # UP
    elif 's' == key:
        action = 3  # DOWN
    elif 'q' == key:
        print("Leaving the game!")
        raise StopIteration()
    else:
        action = 0  # NOOP

    return action

env.reset()

try:
    for step in range(30):
        show_environment(env.render())
        action = play()
        _, _, term, trunc, _ = env.step(action)
        clear_output(wait=True)
except StopIteration as stop:
    pass
env.close()

We reduced 6 actions to 3 because the actions are similar, allowing us to train faster:

def map_env_action(action: int) -> int:
    match action:
        case 0 | 1:  # NOOP | FIRE
            return 0
        case 3 | 5:  # DOWN (LEFT | LEFTFIRE)
            return 3
        case 2 | 4:  # UP (RIGHT | RIGHTFIRE)
            return 2
        case _:
            raise ValueError(f"Invalid action: {action}")

def map_model_action(model_action: int) -> int:
    match model_action:
        case 0:
            return 0  # NOOP
        case 1:
            return 3  # DOWN (LEFT)
        case 2:
            return 2  # UP (RIGHT)
        case _:
            raise Exception(f"Invalid model_action: {model_action}")

def map_env2model(action: int) -> int:
    match action:
        case 0:  # NOOP | FIRE
            return 0  # NOOP
        case 3:  # DOWN (LEFT | LEFTFIRE)
            return 1  # DOWN (LEFT)
        case 2:  # UP (RIGHT | RIGHTFIRE)
            return 2  # UP (RIGHT)
        case _:
            raise ValueError(f"Invalid action: {action}")

This function is just to calculate the execution time (utility):

import time
import functools

from typing import Callable, Any

def timeit(func: Callable) -> Callable:
    @functools.wraps(func)
    def wrapper(*args, **kwargs) -> Any:
        start_time = time.perf_counter()
        result = func(*args, **kwargs)
        end_time = time.perf_counter()
        elapsed_time = end_time - start_time

        print(f"{func.__name__}() executed in {elapsed_time:.4f} seconds")
        return result

    return wrapper

Difference between State and Observation on Gymnasium

The state is the complete representation of the environment; observation is typically partial information about the state. In the Gym library, the two terms are used interchangeably.

In summary, in the code we select state to stay similar to the mathematical formula of Deep Q-Network.

The Spaces type is used by env.observation_space and env.action_space

state_box = env.observation_space
action_size = env.action_space
state_box, action_size

Output: (Box(0, 255, (210, 160, 3), uint8), Discrete(6))

The association between Deep Q-Network and Memory Palace

I’ve organized each part using objects from the Memory Palace, so, when you reach the end of this article, where we’ll encode this knowledge on the virtual space, you’ll start to make associations with this code you’ll implement through the end. We have five objects that after the end of this implementation, you can try and avoid to use external tools, except for specific details, like PyTorch, but don’t worry, mistakes happen (a lot), we just need to practice:

1. Drawing Table

2. Drawing Compass

3. Plumb Line

4. Stone

5. Stone Shaper

Spoiler:

Drawing Table

The class PreprocessingWrapper does all four steps, separated by the following methods:

• _skip_frames: Responsible for skipping similar frames, so when the network is trained, it’s easier to notice the difference between images. If we don’t do that, the training will be harder, the same as comparing two similar images. See the example below:

• _grayscale_frame: For faster processing, we reduce 3 channels (Red, Green, Blue) to only one (Grayscale), if you have a tensor of 3x210x160 you will have to process 100800 positions, but with only one, you process 33600 positions.

• _resize_frame: We reduce the frame to 84x84 to make the process even faster, in this case, we have a reduction of 79%. In this environment we reduce 210x160 to 84x84. Example:

  • From 210x160 = 33,600 to 84×84 = 7,056

  • Reduction: (33,600 - 7,056) / 33,600 = 79.0%

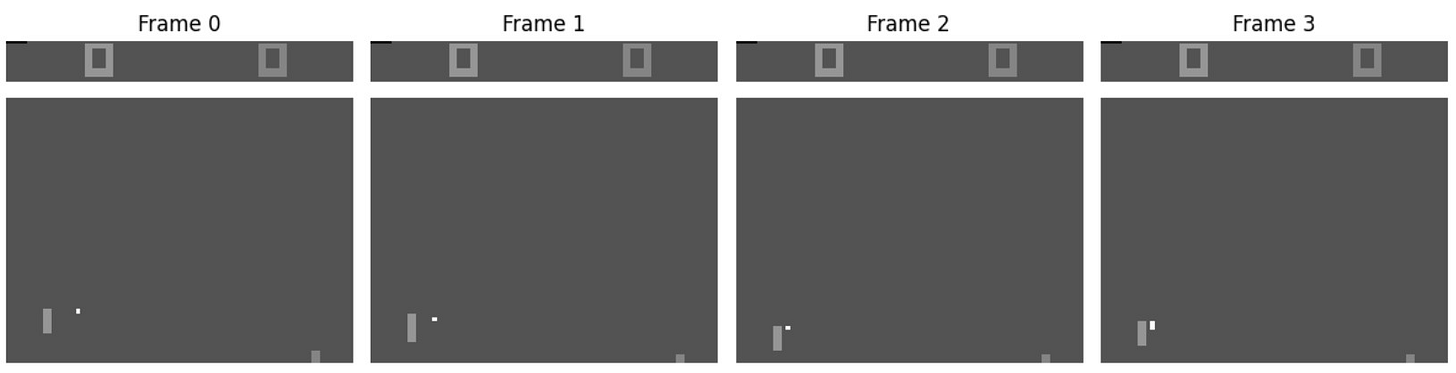

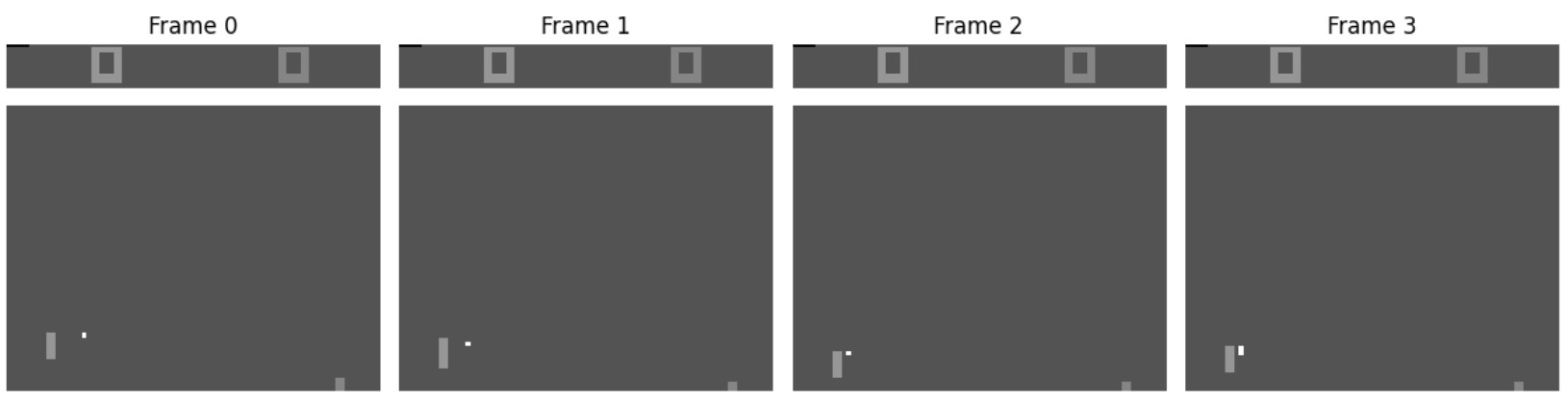

• _finish_concatenate_frames: We concatenate the frames, so our network can learn the movement of the environment, and, based on that, it learns how to react over time. Without it, it would be harder for the network to learn.

• step: This function combines all preprocessing steps. In this code, the term and trunc are joined, but in case you want to make the distinction between them, you can read more in the Gymnasium documentation.

According to the official Gymnasium documentation, terminated indicates “whether the agent reaches the terminal state (as defined under the MDP of the task)” while truncated indicates “whether the truncation condition outside the scope of the MDP is satisfied.”

If you want to learn more about MDP (Markov Decision Process), you can check this link.

class PreprocessingWrapper(gym.Wrapper):

    def __init__(self,
                 env: Env,
                 skip=4,
                 resize=84,
                 concatenate=4,
                 interpolation_mode="nearest"):
        super().__init__(env)
        self._skip = skip
        self._resize = resize
        self._concatenate = concatenate
        self._interpolation_mode = interpolation_mode

    def step(self, action: int) -> tuple[Tensor, float, bool, dict]:

        frames = []
        rewards = []

        for _ in range(self._concatenate):
            state, reward, term, trunc, info = self._skip_frames(action)
            gray_state = self._grayscale_frame(state)
            resized_state = self._resize_frame(gray_state)
            frames.append(resized_state)
            rewards.append(reward)

            if term or trunc:
                break

        concat_state, total_reward = self._finish_concatenate_frames(frames, rewards)
        return concat_state, total_reward, term, trunc, info

    def _skip_frames(self, action: int):
        # Hopscotch - Get meaningful changes between images
        total_reward = 0
        for _ in range(self._skip + 1):
            state, reward, term, trunc, info = self.env.step(action)
            total_reward += reward
            if term or trunc:
                break

        return state, total_reward, term, trunc, info

    def _grayscale_frame(self, state):
        # We first convert to PyTorch
        state = torch.from_numpy(state).float()
        # Greyscale fish - Make processing faster. We have [Height, Width, Channel], we apply the mean in the Channel
        state = (state.mean(dim=2, keepdim=True)
                      .permute(2, 0, 1)
                      .to(dtype=torch.uint8))
        return state

    def _resize_frame(self, state):
        # Binoculos of Fire 84x84 (major method mnemonic) - We optimize processing to work with a smaller images
        return (functional.interpolate(state.unsqueeze(dim=0),
                                       size=(self._resize, self._resize),
                                       mode=self._interpolation_mode)).squeeze(dim=0)

    def _finish_concatenate_frames(self, frames, rewards):
        # We ensure that the shape is 4x84x84 in the end
        for i in range(len(frames), self._concatenate):
            last_state = frames[-1]
            last_reward = rewards[-1]
            # We clone to maintain consistency
            frames.append(last_state.clone())
            rewards.append(last_reward)
        # Cat grabs the ears (4) frames - With this, the neural network can learn the moviment in the image
        state = torch.cat(frames, dim=0)
        total_reward = sum(rewards)
        return state, total_reward

    def reset(self, *, seed=None, options=None) -> Tuple[Tensor, dict]:
        state, info = self.env.reset(seed=seed, options=options)

        frames = []
        rewards = []

        gray_state = self._grayscale_frame(state)
        resized_state = self._resize_frame(gray_state)

        frames.append(resized_state)
        rewards.append(0.0)

        concat_state, _ = self._finish_concatenate_frames(frames, rewards)
        return concat_state, info

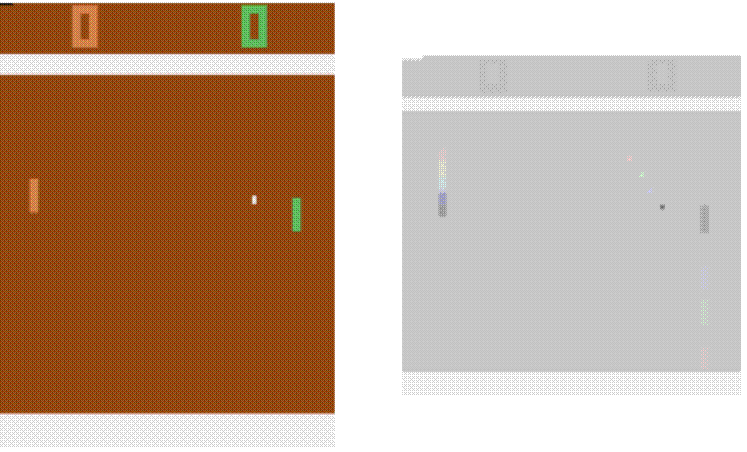

Below the explanation in video about the preprocessing steps:

If you’re in doubt about _finish_concatenate, execute the code below and make your tests

with frames = [0], or frames = [0, 1], so on:

frames = [0, 1]
concat = 4
for i in range(len(frames), concat):
    frames.append(i)
frames

Output: [0, 1, 2, 3]

Check if CUDA is available, if you have AMD, you can try ROCm

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"CUDA? {device}")

Output (if you have CUDA): CUDA? cuda

Here we create the environment and generate the states so we can understand the argmax and max:

def make_wrapped_env(env_name, device, **params):
    render_node = params.get("render_mode", "rgb_array")
    env = gym.make(env_name,
                   render_mode=render_node,
                   **params)
    env.reset()
    env = PreprocessingWrapper(env)
    return env

env_name = "PongNoFrameskip-v4"
env = make_wrapped_env(env_name, device)

# The states will be used in the example below,
states = []

for step in range(50):
    action = env.action_space.sample()
    state, reward, term, trunc, info = env.step(action)
    show_environment(env.render(), state)
    states.append(state)
    if term or trunc:
        env.reset()
        break
    time.sleep(0.01)
    clear_output(wait=True)

env.close()

Note about development process: The method debug_concat_frames was created because the agent was not learning, the cause was because the class PreprocessingWrapper had an error on the conversion type, I had a normalized image in the range [0, 1] but, when we passed to the ReplayBuffer, the states was all zeroed, because the states were being stored as uint8, so we lost the values in-between 0 and 1. The debug_concat_frames helped to debug and find this problem.

def debug_concat_frames(tensor: Tensor):
    tensor = tensor.detach().cpu()
    fig, axes = plt.subplots(1, 4, figsize=(12, 12))

    for i, ax in enumerate(axes.flat):
        frame = tensor[i]  # shape (84, 84)
        ax.imshow(frame, cmap='gray')
        ax.set_title(f"Frame {i}")
        ax.axis('off')

    plt.tight_layout()
    plt.show()

debug_concat_frames(states[5])

Below, you can see the difference between frames, you can increase the skip parameter of the environment Pong to see this difference increase more, but I do not recommend training with skip greater than 4, it make hard to predict the flow of the ball and the paddle.

Drawing Compass

We are going to define the architecture of our neural network, but let’s have a simple explanation of CNN and its advantages:

A CNN is a type of neural network architecture that uses convolutional filters that slide across the spatial dimensions of the image (such as RGB channels), and produces feature maps.

These feature maps maintain spatial information of the original image, after that we apply some pooling operations, like average or max, to reduce the data size and keep the most important information, and at the end of the network, after passing through multiple convolutional layers, backpropagation computes the filter weights during training, and the optimizer updates the weights, allowing each filter to learn specific information. For example:

1. First layers detect information about lines, angles, edges, gradients, colors and simple textures

2. Intermediate layers detect information about parts of objects such as eyes, mouths, noses and wheels.

3. Deeper layers detect complex details about faces, hands, bodies, objects, or cars.

CNNs learn hierarchical features: the first layers learn local patterns, and the last layers learn global patterns.

Observation: Pooling layers usually don’t have weights in them, so they are not updated in backpropagation.

The pattern [B, C, H, W] is the same as [Batch, Channels, Height, Width]. And when we call the unsqueeze() we are adding in the specified position, a new dimension, so we go from [C, H, W] to [1, C, H, W] if you make unsqueeze(0), but if you make unsqueeze(1), it would be from [C, H, W] to [C, 1, H, W].

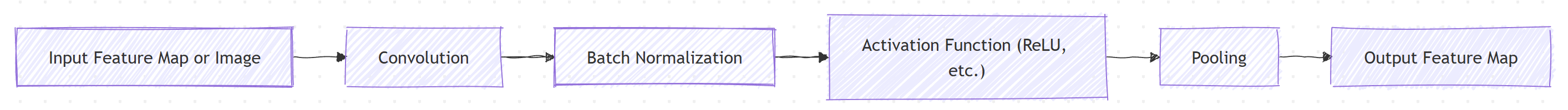

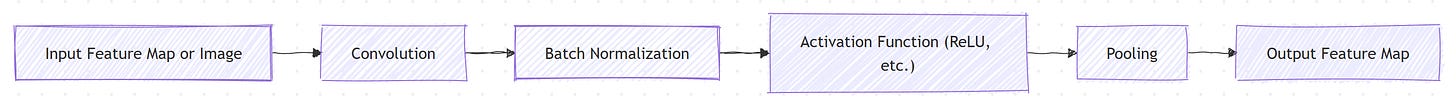

Made using mermaid

In case you want to study later about the subject, see the sources below:

• CNN Explainer

• Convolutional Neural Network: A Complete Guide

• Feature Visualization

• Convolutional Neural Networks (CNN Visualized)

• Neural Networks Part 8: Image Classification with Convolutional Neural Networks (CNNs)

Note about development process: Our specific implementation doesn’t use pooling layers and the last layer is raw Q-values, be careful to not put an activation layer of sigmoid, softmax, etc.

In case you want to understand how the convolution works, watch the video below:

Note: The architecture show in the video, is not the same as implemented, it’s just for reference.

For the network we’ll base our implementation described in the paper, with difference that the input is 4x84x84 instead of 84x84x4:

The exact architecture, shown schematically in Fig. 1, is as follows. The input to the neural network consists of an 84 × 84 × 4 image produced by the preprocessing map ϕ. The first hidden layer convolves 32 filters of 8 × 8 with stride 4 with the input image and applies a rectifier nonlinearity. The second hidden layer convolves 64 filters of 4 × 4 with stride 2, again followed by a rectifier nonlinearity. This is followed by a third convolutional layer that convolves 64 filters of 3 × 3 with stride 1 followed by a rectifier. The final hidden layer is fully-connected and consists of 512 rectifier units. The output layer is a fully-connected linear layer with a single output for each valid action. The number of valid actions varied between 4 and 18 on the games we considered.

— Mnih et al., Human-level Control Through Deep Reinforcement Learning, Nature, 2015.

Note about development process: The old architecture was basically (channels=128, kernel=7) -> (channels=64, kernel=5) -> (channels=32, kernel=3) with stride=1, however the model was complex and was very slow to converge, so I decided to use the architecture of the paper. Other point is that, when we usually train object detection and classification we start with a bunch of channels and we reduce along the way, but the DQN does the opposit.

class Network(nn.Module):

    def __init__(self, input_size: int, actions: int):
        # https://docs.pytorch.org/docs/stable/generated/torch.nn.Module.html
        super(Network, self).__init__()
        self.conv1 = nn.Conv2d(in_channels=input_size, out_channels=32, stride=4, kernel_size=(8, 8))
        self.relu1 = nn.ReLU()
        self.conv2 = nn.Conv2d(in_channels=32, out_channels=64, stride=2, kernel_size=(4, 4))
        self.relu2 = nn.ReLU()
        self.conv3 = nn.Conv2d(in_channels=64, out_channels=64, stride=1, kernel_size=(3, 3))
        self.relu3 = nn.ReLU()
        self.flatten = nn.Flatten()
        # LazyLinear calculates the size of linear layer for us
        self.linear1 = nn.LazyLinear(out_features=512)
        self.relu4 = nn.ReLU()
        self.linear2 = nn.LazyLinear(actions)

    def forward(self, x):
        x = self.relu1(self.conv1(x))
        x = self.relu2(self.conv2(x))
        x = self.relu3(self.conv3(x))
        x = self.flatten(x)
        x = self.relu4(self.linear1(x))
        x = self.linear2(x)
        return x

In the torch.cat() part, we put an extra dimension so we concatenate in this dimension, where we go from 4x84x84 to 1x4x84x84, then join the images on first dimension to make from 1x4x84x84 to 2x4x84x84, and so on, until we concatenate all of them, becoming 50x4x84x84.

After that, we create the network just to test, and get 6 random states so the explanation can be easier (can be more, or less, I choose 6).

Note about development process: Pong’s action space contains 6 discrete actions. However, in the example below, I will use only 5 actions to simplify the demonstration.

action_space_test_n = 5
states = torch.cat([state.unsqueeze(0) for state in states], dim=0)
print("states shape:", states.shape)

test_model = Network(input_size=4, actions=action_space_test_n)
six_states = states[torch.randint(low=0, high=len(states), size=(6,))]
print("shape:", six_states.shape)
# We need to convert to float, because the neural network don't accept ints
print("uint8 type:", six_states.dtype)
six_states = six_states.float().div_(255.0)
print("float32 type:", six_states.dtype)

Output:

states shape: torch.Size([50, 4, 84, 84])
shape: torch.Size([6, 4, 84, 84])
uint8 type: torch.uint8
float32 type: torch.float32

---

We’ll learn how to use the dim (dimension) parameter in PyTorch, similiar to other libraries such as NumPy.

When we call these functions without passing the dim parameter:

• max(): returns the single greatest element of the tensor (a scalar value).

• argmax(): returns the index of the greatest element.

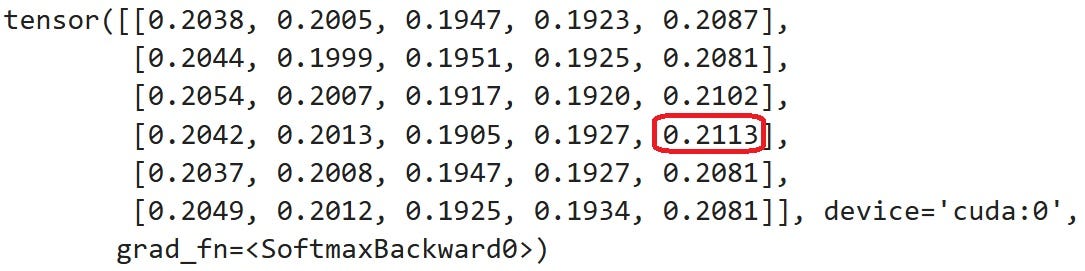

The max() function is below as an example:

print(test_model.forward(six_states))
print(test_model.forward(six_states).argmax())
print(test_model.forward(six_states).max())

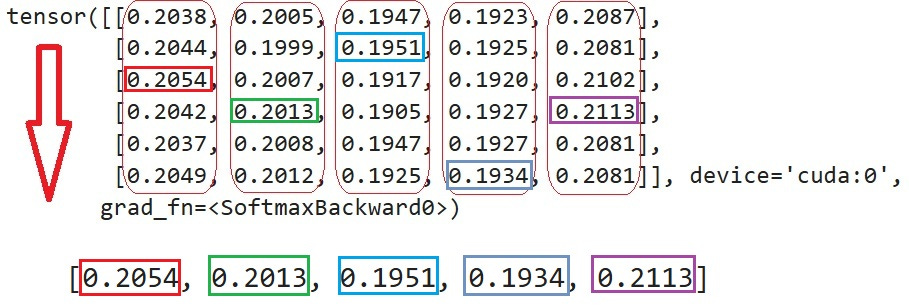

When we use dim=0, argmax() or max() is applied column-wise, reducing the tensor by comparing elements across rows, as shown in the example below.

print(test_model(six_states).argmax(dim=0))
print(test_model(six_states).max(dim=0))

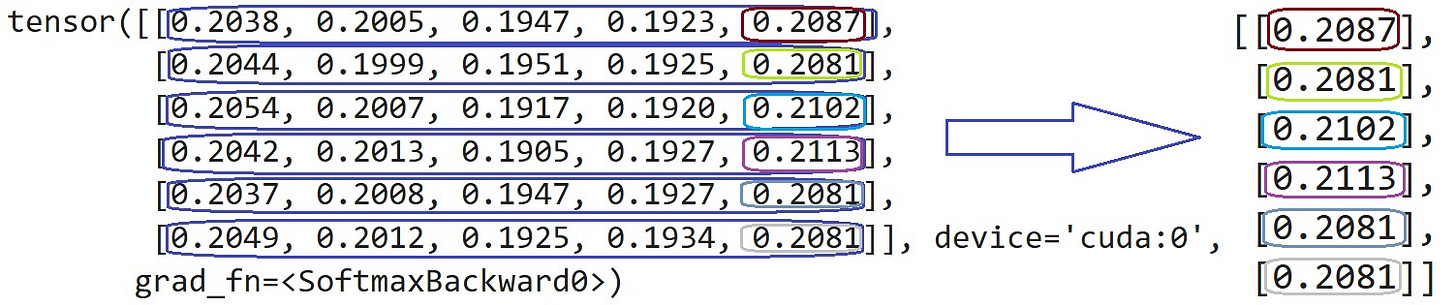

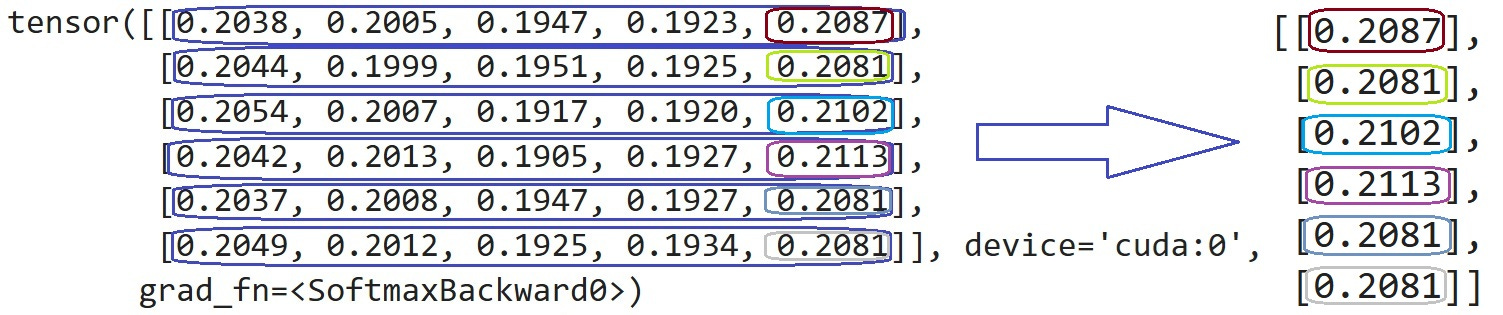

When we use dim=1, argmax() or max() is applied row-wise, reducing the tensor by comparing elements across columns, as shown in the example below.

We use dim=1 because we want the maximum action value for each state. The tensor shape is [batch_size, actions].

print(test_model.forward(six_states).argmax(dim=1))
print(test_model.forward(six_states).max(dim=1))
# Reshaped to be vertical, just to create the example above
print(test_model.forward(six_states).max(dim=1).values.reshape(-1, 1))

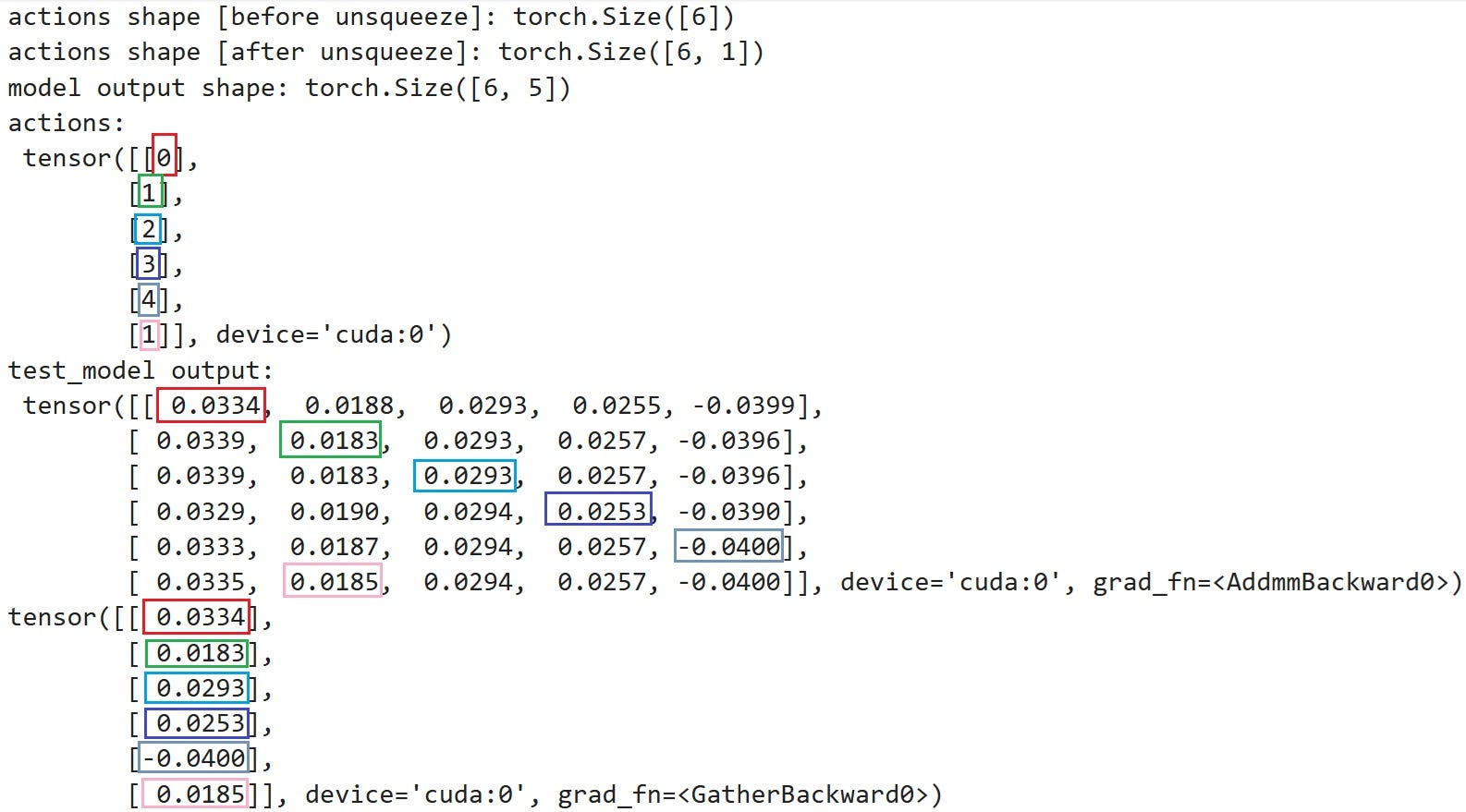

We will learn how torch.gather works, as it will be used later in this article. In the example below, actions has shape (6,), but the q_values has shape (6, 5), to use torch.gather (the same as test_model(six_states).gather(...)) we must reshape actions shape to the dimensions as q_values, we use actions.unsqueeze(1) to do that.

Why torch.gather? It’s useful for sparse data handling, where we don’t work with fixed positions, like Reinforcement Learning situations, or even Recommendation Systems, like the Factorization Machines, where data is extremely sparse.

actions = torch.tensor([0, 1, 2, 3, 4, 1])
q_values = test_model(six_states)
print("actions shape [before unsqueeze]:", actions.shape)
actions = actions.unsqueeze(1)
print("actions shape [after unsqueeze]:", actions.shape)
print("model output shape:", q_values.shape)
print("actions:\n", actions)
print("test_model output:\n", test_model(six_states))
print(test_model(six_states).gather(dim=1, index=actions))

Sources:

• https://stackoverflow.com/questions/50999977/what-does-gather-do-in-pytorch-in-layman-terms

  • This one has excellent explanations. I recommend checking it out.

• https://docs.pytorch.org/docs/stable/generated/torch.gather.html#torch.gather

In the AgentDQN constructor, we configure two networks, one is the Q-online network that’ll be trained in real time, while Q-target will have weights that are updated periodically and won’t be trained directly. Q-target will be used as a baseline so the training can be more stable, different from supervised learning, where we already have the labels, in reinforcement learning we must learn about the environment in real time, so the authors of the paper Human-level Control Through Deep Reinforcement Learning, proposed these two networks as a solution. Imagine we have just one network, the training will be very unstable, making it harder to converge to the optimal solution.

The method select_action, is almost the same as the traditional Q-Learning based on Q-Table algorithm, in the previous article we used epsilon-greedy, and this follows the same approach, with the difference that we use a neural network.

Note about development process: In select_action we use @torch.no_grad() because we don’t need a computational graph for backpropagation, since we’re only getting actions and not training. We’ll train our Q-online network using the DQN formula (the explanation is in the “Stone” part).

For the optimizer, we’ll use RMSprop, the same used in the paper on which we based this implementation.

Below is an example of how typically they behave, where RMSProp tends to be more stable than standard SGD:

Image generated by Google Gemini

If you want to learn more about how RMSprop and SGDwork, you can check the link below:

• RMSProp (C2W2L07)

• RMSProp d2l

• PyTorch RMSprop

• Exponentially Weighted Moving Average (EWMA) Explained | Deep Learning #10

• Stochastic Gradient Descent

• Backpropagation, intuitively | Deep Learning Chapter 3

The _get_fig_axes(), _draw_progress(), _checkpoint() and from_checkpoint() will not be mentioned in the memory palace part, but they’ll be used to draw graphics, showing the evolution of this agent, over time. We can go back to checkpoints too.

The other methods that we’ll bind later, are going to be explained subsequently step by step.

# We'll bind the empty methods later

class AgentDQN:

    def __init__(self,
                 device: torch.device,
                 episodes: int,
                 epsilon_min: float,
                 epsilon_decay: float,
                 gamma: float,
                 update_interval: int,
                 checkpoint_min_episodes: int,
                 action_space_n: int,
                 learning_rate: float = 0.00025,
                 cat_input_size: int = 4,
                 inference: bool = False,
                 interactive: bool = True,
                 execution_id: str = None,
                 map_env_action=lambda action: action,
                 map_model_action=lambda model_action: model_action,
                 _loading_checkpoint: bool = False):
        self.execution_id = uuid4().hex if execution_id is None else execution_id
        self.device = device
        self.episodes = episodes
        self.epsilon_min = epsilon_min
        self.epsilon_decay = epsilon_decay
        self.gamma = gamma
        self.update_interval = update_interval
        self.checkpoint_min_episodes = checkpoint_min_episodes
        self.inference = inference
        self.interactive = interactive
        self.map_env_action = map_env_action
        self.map_model_action = map_model_action
        self.cnt_frames = 0
        self.logger = logging.getLogger(self.__class__.__name__)

        if not _loading_checkpoint:
            q_online = Network(input_size=cat_input_size,
                               actions=action_space_n)
            q_target = Network(input_size=cat_input_size,
                               actions=action_space_n)
            q_target.load_state_dict(q_online.state_dict())
            self._set_mode(q_online)
            self._set_mode(q_target, freeze=True)
            self.q_online = q_online.to(device)
            self.q_target = q_target.to(device)
            self.optimizer = optim.RMSprop(q_online.parameters(),
                                           lr=learning_rate)
            os.makedirs(f"./checkpoints_{self.execution_id}", exist_ok=True)
            self.logger.info(f"Created the agent: {self.execution_id}")
        else:
            self.q_online = None
            self.q_target = None
            self.optimizer = None
            self.logger.info(f"Loading checkpoint...")

    @torch.no_grad()
    def select_action(self, env: Env, epsilon: float, state: Tensor):
        # Mr. Krabs, remember? epsilon-greedy
        if torch.rand(1).item() < epsilon:
            return self.map_env_action(env.action_space.sample())

        # [C, H, W] -> [1, C, H, W]
        state = (state.to(self.device, dtype=torch.float32)
                      .div_(255.)
                      .unsqueeze_(dim=0))
        action = self.q_online(state).argmax(dim=1)
        return self.map_model_action(action.item())

    def _get_fig_axes(self, plot_trackers_count: int) -> Tuple[plt.Figure, list[plt.Axes]]:
        fig = plt.figure(figsize=(6 * plot_trackers_count, 5))
        axs = fig.subplots(nrows=1,
                           ncols=plot_trackers_count)

        if not isinstance(axs, (list, tuple, np.ndarray)):
            axs = [axs]

        if self.interactive:
            plt.ion()
            plt.show(block=False)

        return fig, axs

    def _draw_progress(self,
                       pbar: tqdm,
                       fig: plt.Figure,
                       axs: list[plt.Axes],
                       episode: int,
                       log_interval: int,
                       cnt_frames: int,
                       episode_tracker: list[int],
                       plot_trackers: dict[str, list]) -> None:
        if episode == 0:
            return

        pbar.set_postfix({
            "ε": f"{plot_trackers['epsilon'][-1]:.4f}",
            "🪙": f"{plot_trackers['reward'][-1]:.4f}",
            "📉": f"{plot_trackers['loss'][-1]:.4f}",
            "🖼️": str(cnt_frames)
        })

        if (episode % log_interval == 0 or
            episode == self.episodes):
            reward = int(plot_trackers["reward"][-1])
            self.logger.info(f"Rewards: {reward}, count frames: {cnt_frames}")

            for ax, (title, tracker) in zip(axs, plot_trackers.items()):
                ax.clear()
                ax.set_title(title)
                ax.plot(episode_tracker, tracker)
            plt.tight_layout()
            fig.canvas.draw_idle()
            if not self.interactive:
                display(fig)

    def _set_mode(self, model: Network, freeze: bool = False) -> None:
        if freeze or self.inference:
            # Don't compute statistics
            model.eval()
            # Don't compute gradients
            for param in model.parameters():
                param.requires_grad = False
        else:
            # Generate statistics used in training
            model.train()

    def _checkpoint(self,
                    episode: int,
                    current_total_reward: float,
                    best_total_reward: float,
                    cnt_frames: int,
                    trackers: dict,
                    delta: float = 0.0001) -> float:
        # delta is used to avoid the problem with float numbers
        if (episode <= 0 or
            current_total_reward < (best_total_reward + delta) or
            episode < self.checkpoint_min_episodes):
            return best_total_reward

        self.logger.info(f"Creating checkpoint because current_total_reward > best_total_reward: "
                         f"{current_total_reward} > {best_total_reward}")
        self.save_training(episode,
                           current_total_reward,
                           cnt_frames,
                           f"checkpoint_{str(episode).replace(".", "_")}_{current_total_reward}",
                           trackers)
        return current_total_reward

    def save_training(self,
                      episode: int,
                      reward: float,
                      cnt_frames: int,
                      file_name: str,
                      trackers: dict = None) -> None:

        if not trackers:
            trackers = {
                "epsilon": [np.nan],
                "reward": [reward],
                "loss": [np.nan],
            }

        # I'll save together, but the standard way is to save the metadata separated from the weights
        checkpoint_info = {
            "episode": episode,
            "cnt_frames": cnt_frames,
            "epsilon_min": self.epsilon_min,
            "epsilon_decay": self.epsilon_decay,
            "gamma": self.gamma,
            "update_interval": self.update_interval,
            "checkpoint_min_episodes": self.checkpoint_min_episodes,
            "learning_rate": self.optimizer.param_groups[0]['lr'],
            "model_state_dict": self.q_online.state_dict(),
            "optimizer_state_dict": self.optimizer.state_dict(),
            "epsilon": trackers["epsilon"][-1],
            "reward": trackers["reward"][-1],
            "loss": trackers["loss"][-1],
        }

        torch.save(checkpoint_info, f"./checkpoints_{self.execution_id}/{file_name}.pth")

    @classmethod
    def from_checkpoint(cls,
                        execution_id: str,
                        episode: int,
                        episodes: int,
                        action_space_n: int,
                        file_path: str,
                        cat_input_size: int = 4,
                        inference: bool = False,
                        interactive: bool = False,
                        map_env_action=lambda action: action) -> Self:
        logging.getLogger(cls.__name__).debug(f"Getting agent from checkpoint: {file_path}")
        if not os.path.exists(file_path):
            raise FileNotFoundError(f"No checkpoint file \"{file_path}\" found for execution_id: {execution_id}")

        checkpoint_info = torch.load(file_path,
                                     weights_only=False,
                                     map_location="cpu")
        device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
        model_state_dict = checkpoint_info["model_state_dict"]

        agent = cls(
            device=device,
            episodes=episodes,
            epsilon_min=checkpoint_info["epsilon_min"],
            epsilon_decay=checkpoint_info["epsilon_decay"],
            gamma=checkpoint_info["gamma"],
            update_interval=checkpoint_info["update_interval"],
            checkpoint_min_episodes=checkpoint_info["checkpoint_min_episodes"],
            action_space_n=action_space_n,
            cat_input_size=cat_input_size,
            inference=inference,
            interactive=interactive,
            execution_id=execution_id,
            map_env_action=map_env_action,
            _loading_checkpoint=True
        )

        q_online = Network(input_size=cat_input_size,
                           actions=action_space_n)
        q_target = Network(input_size=cat_input_size,
                           actions=action_space_n)
        q_online.load_state_dict(checkpoint_info["model_state_dict"])
        q_target.load_state_dict(checkpoint_info["model_state_dict"])

        agent._set_mode(q_online, freeze=inference)
        agent._set_mode(q_target, freeze=True)

        agent.q_online = q_online.to(device)
        agent.q_target = q_target.to(device)

        agent.optimizer = optim.RMSprop(agent.q_online.parameters(),
                                        lr=checkpoint_info["learning_rate"])
        agent.optimizer.load_state_dict(checkpoint_info["optimizer_state_dict"])

        agent.logger.info(f"Loaded agent from checkpoint: {file_path}")
        agent.logger.info(f"Checkpoint episode: {checkpoint_info["episode"]}")
        agent.logger.info(f"Checkpoint epsilon: {checkpoint_info["epsilon"]:.4f}")
        agent.logger.info(f"Checkpoint reward: {checkpoint_info["reward"]:.4f}")
        agent.logger.info(f"Checkpoint loss: {checkpoint_info["loss"]:.4f}")

        return agent

    # bind later
    def train(self,
              env: Env,
              epsilon: float,
              log_interval: int,
              replay_buffer: "ReplayBuffer",
              loss_func: "_Loss",
              start_episode: int = 0) -> None:
        pass

    # bind later (1)
    def run(self,
            env: Env,
            episodes: int = 10,
            output: bool = True,
            epsilon: float = 0.01,
            video_folder: str = None) -> list[float]:
        pass

    # bind later (2)
    def _train_q_online(self,
                        replay_buffer: "ReplayBuffer",
                        loss_func: "_Loss") -> float:
        pass

    # bind later (3)
    def _update_q_target(self, episode: int) -> None:
        pass

    # bind later (4)
    def _reduce_epsilon(self, epsilon: float) -> float:
        pass

Plumb Line

The replay buffer will be used as a store for past experiences, so when we train, we uniformly sample from it. You can read the mathematical notation as “Make a uniform distribution sampling on D, where D is the representation of the replay buffer in the article we are basing this implementation (we include the d of done, but in the original article, it’s omitted):

\(\begin{align} (s, a, r, s_{t+1}, d) \sim U(\mathcal{D}) \\ s = \text{states} \\ r = \text{rewards} \\ a = \text{actions} \\ s_{t+1} = \text{next states} \\ d = \text{done} \\ \sim \text{ } = \text{sampled from or distributed as} \\ U = \text{uniform} \end{align}\)

Why do we use torch.zeros(...) in the ReplayBuffer instead of collections.deque? Because it’s a block-linked array (resembles a linked list, but uses blocks instead of nodes) data structure, so, you’ll have O(n) to access elements in the middle for example. It’ll be slow when sampling multiple random experiences, deque has O(1) access only at the head and tail. Other extra advantages of torch.zeros():

• Contiguous memory allocation

• O(1) random access via indexing

• GPU compatibility (can transfer to CUDA)

• Better cache locality

In the sample_batch we use np.random.choice because torch.randint does not have an option to work without replacement (with replacement, we can repeat the same samples), and the variable self.count is used instead of self.size because we want to sample in valid positions, the other positions in the beginning were not filled with valid states, they’re zeroed data, that torch allocated for us.

More about optimization

Another optimization we made was to store the states as uint8, because at first, I used float32, but it occupies too much memory. It’s sufficient to store as uint8 because it holds 256 possible values (0-255), which is good for images. One image as uint8 is 28,224 bytes while float32 is 112,896 bytes. However, this introduces another problem: PyTorch (and neural networks in general) works with float values. The solution is to convert to float32 when a sample is drawn from the buffer, and then pass it to the device (CUDA if you have a GPU). Later I decided to optimize the other fields as well, except for the reward, because if we use float16 or uint8, we’ll lose precision and when training, the gradients can vanish.

Details of PyTorch

Methods that end with an underscore (like .div_(), .add_()) modify the tensor in place, so they’re mutable operations, while methods without underscores return new tensors. We use .div_(255.0) to make execution faster and avoid unnecessary copies. Since tensor.to() already creates a new tensor, the in-place division doesn’t affect the original states and next_states stored in the buffer.

Sources:

• https://github.com/Curt-Park/rainbow-is-all-you-need/blob/master/01.dqn.ipynb

• https://stackoverflow.com/questions/6256983/how-are-deques-in-python-implemented-and-when-are-they-worse-than-lists

• https://github.com/python/cpython/blob/v3.8.1/Modules/_collectionsmodule.c

• https://docs.pytorch.org/docs/stable/generated/torch.Tensor.to.html

class Experience(NamedTuple):
    state: torch.ByteTensor  # uint8
    action: torch.ByteTensor  # uint8
    reward: torch.FloatTensor
    next_state: torch.ByteTensor  # uint8
    done: torch.BoolTensor


class ReplayBuffer:

    def __init__(self,
                 size: int,
                 state_shape: torch.Size,
                 batch_size: int,
                 device: torch.device,
                 map_env2model: lambda action: action,
                 _load_from_file=False):
        if _load_from_file:
            logging.info("Loading ReplayBuffer from file")
            return

        self.size = size
        self.batch_size = batch_size
        self.pos = 0
        self.count = 0
        self.device = device
        self.map_env2model = map_env2model
        # states and next_states has shape [B, Concatenate, C, H, W]
        self.states = torch.zeros((size,) + state_shape, dtype=torch.uint8)
        self.actions = torch.zeros(size, dtype=torch.uint8)
        self.rewards = torch.zeros(size, dtype=torch.float32)
        self.next_states = torch.zeros((size,) + state_shape, dtype=torch.uint8)
        self.done = torch.zeros(size, dtype=torch.bool)

    def store(self, experience: Experience) -> None:
        state, action, reward, next_state, done = experience
        pos = self.pos
        size = self.size
        self.states[pos] = state
        self.actions[pos] = action
        self.rewards[pos] = reward
        self.next_states[pos] = next_state
        self.done[pos] = done
        self.pos = (pos + 1) % size
        if self.count < size:
            self.count += 1

    def sample_batch(self) -> Tuple[Tensor, Tensor, Tensor, Tensor, Tensor]:
        # Convert types and move to GPU before returning
        device = self.device
        samples_pos = np.random.choice(self.count, self.batch_size, replace=False)
        states = self.states[samples_pos].to(device, dtype=torch.float32).div_(255.0)
        # torch.gather() expects torch.long, not torch.int
        actions = torch.from_numpy(self._mapped_actions(samples_pos)).to(device, dtype=torch.long)
        rewards = self.rewards[samples_pos].to(device)
        next_states = self.next_states[samples_pos].to(device, dtype=torch.float32).div_(255.0)
        done = self.done[samples_pos].to(device)
        return states, actions, rewards, next_states, done

    def _mapped_actions(self, samples_pos):
        # We have to map back to model because we reduced the environment from 6 to 3
        actions_np = self.actions[samples_pos].numpy()
        return np.array([self.map_env2model(a) for a in actions_np])

    def enough(self) -> bool:
        return len(self) >= self.batch_size

    @property
    def cnt_rewards(self) -> int:
        return torch.count_nonzero(self.rewards > 0).item()

    def __len__(self):
        return self.count

    # Extra methods to make the training easier, to go back to the same state (checkpoint)
    def save(self, file_path: str):
        """Save buffer to disk using PyTorch's native format."""
        torch.save({
            'states': self.states,
            'actions': self.actions,
            'rewards': self.rewards,
            'next_states': self.next_states,
            'done': self.done,
            'pos': self.pos,
            'count': self.count,
            'size': self.size,
            'batch_size': self.batch_size
        }, file_path)

    def _set_checkpoint_data(self, checkpoint: dict):
        self.states = checkpoint['states']
        self.actions = checkpoint['actions']
        self.rewards = checkpoint['rewards']
        self.next_states = checkpoint['next_states']
        self.done = checkpoint['done']
        self.pos = checkpoint['pos']
        self.count = checkpoint['count']
        self.size = checkpoint['size']
        self.batch_size = checkpoint['batch_size']
        return self

    @classmethod
    def from_file(cls,
                  file_path: str,
                  device: torch.device,
                  map_env2model=lambda action: action):
        """Create buffer from saved file."""
        checkpoint = torch.load(file_path, map_location='cpu')
        buffer = cls(
            size=None,
            state_shape=None,
            batch_size=None,
            device=None,
            map_env2model=None,
            _load_from_file=True
        )
        buffer.device = device
        buffer.map_env2model = map_env2model
        buffer._set_checkpoint_data(checkpoint)
        return buffer

This BinaryReplayBuffer is not present in the paper that we’re basing this implementation on, however, there’s another paper called Language understanding for text-based games using deep reinforcement learning which uses a separation with a fixed ratio between wins and losses. In my case I set it to 50/50 for each case. We’ll first test with the standard ReplayBuffer, then we’ll try using this implementation.

class BinaryReplayBuffer:
    def __init__(self,
                 size: int,
                 state_shape: torch.Size,
                 batch_size: int,
                 device: torch.device,
                 map_env2model=lambda action: action,
                 _load_from_file=False):
        if _load_from_file:
            logging.info("Loading BinaryReplayBuffer from file")
            return

        self.size = size
        self.batch_size = batch_size
        self.half_batch_size = batch_size // 2
        self.device = device
        self.enough_both = False

        # Make these instance variables with self.
        half_size = size // 2
        self.win_replay_buffer = ReplayBuffer(
            half_size, state_shape, self.half_batch_size, device,
            map_env2model, _load_from_file=_load_from_file
        )
        self.other_replay_buffer = ReplayBuffer(
            half_size, state_shape, self.half_batch_size, device,
            map_env2model, _load_from_file=_load_from_file
        )

    def store(self, experience: Experience, delta: float = 0.0001) -> None:
        reward = experience.reward
        if reward > delta:
            self.win_replay_buffer.store(experience)
        else:
            self.other_replay_buffer.store(experience)

    def sample_batch(self) -> Tuple[Tensor, Tensor, Tensor, Tensor, Tensor]:
        w_states, w_actions, w_rewards, w_next_states, w_done = self.win_replay_buffer.sample_batch()
        o_states, o_actions, o_rewards, o_next_states, o_done = self.other_replay_buffer.sample_batch()
        return (
            torch.cat([w_states, o_states]),
            torch.cat([w_actions, o_actions]),
            torch.cat([w_rewards, o_rewards]),
            torch.cat([w_next_states, o_next_states]),
            torch.cat([w_done, o_done])
        )

    def enough(self) -> bool:
        if self.enough_both:
            return True
        self.enough_both = (
            len(self.win_replay_buffer) >= self.half_batch_size and
            len(self.other_replay_buffer) >= self.half_batch_size
        )
        return self.enough_both

    def __len__(self):
        return len(self.win_replay_buffer) + len(self.other_replay_buffer)

    @property
    def cnt_rewards(self) -> int:
        return self.win_replay_buffer.cnt_rewards + self.other_replay_buffer.cnt_rewards

    def save(self, file_path: str) -> None:
        self.win_replay_buffer.save(file_path.replace(".pth", "_win.pth"))
        self.other_replay_buffer.save(file_path.replace(".pth", "_other.pth"))

    @classmethod
    def from_file(cls,
                  file_path: str,
                  device: torch.device,
                  map_env2model=lambda action: action):
        """Create buffer from saved file."""
        win_replay_buffer_path = file_path.replace(".pth", "_win.pth")
        other_replay_buffer_path = file_path.replace(".pth", "_other.pth")

        bin_replay_buffer = cls(
            size=None,
            state_shape=None,
            batch_size=None,
            device=None,
            map_env2model=map_env2model,
            _load_from_file=True
        )

        bin_replay_buffer.win_replay_buffer = ReplayBuffer.from_file(
            win_replay_buffer_path, device, map_env2model
        )
        bin_replay_buffer.other_replay_buffer = ReplayBuffer.from_file(
            other_replay_buffer_path, device, map_env2model
        )

        # Extract values from the loaded buffers
        bin_replay_buffer.size = (bin_replay_buffer.win_replay_buffer.size +
                                   bin_replay_buffer.other_replay_buffer.size)
        bin_replay_buffer.batch_size = (bin_replay_buffer.win_replay_buffer.batch_size +
                                         bin_replay_buffer.other_replay_buffer.batch_size)
        bin_replay_buffer.half_batch_size = bin_replay_buffer.batch_size // 2
        bin_replay_buffer.map_env2model = map_env2model
        bin_replay_buffer.device = device
        bin_replay_buffer.enough_both = False

        return bin_replay_buffer

Stone

The train method will have the core of DQN, where like the classic Q-Learning, we iterate through the environment exploring or exploiting, in this case, we register the epsilon decay to visualize it over time.

The _train_q_online is the implementation of the formula:

\(y = r + \gamma \max_{a’} Q_{target}(s’, a’) \cdot (1 - done)\)

In the part (1.0 - done.float()), we must do that because PyTorch does not allow arithmetic on boolean tensors. Other options exist, such as (~done).float() and torch.logical_not(done).float(), but using the first way, we respect the formula above to make it easier to store in the memory palace.

Note: The (1.0 - done.float()) is called mask in programming.

With the method to minimize the error, which can be the MSE or Huber Loss, in our implementation, we’re using the MSE because of its simplicity, but in the original article they prefer Huber Loss as it’s more efficient against outliers:

\(\begin{flalign} MSE(\hat{y}, y) = \frac{1}{n} \sum_{i=1}^n(y_i - \hat{y}_i)^2 \\ Loss = \text{MSE}\big(Q_{\text{online}}(s, a)\;, y \big) \end{flalign}\)

Note: When you find an E in the article, this means Expected Value, which in this case is the same as mean.

The method _update_q_target is when we replace every C steps at timestep i the target network weights with the online network weights. If we don’t do that, the training stalls and becomes unstable. The formula is below:

\(\begin{flalign} \theta_i^{-} &\leftarrow \theta_i \\ \theta_i^{-} = \text{target network} \\ \theta_i = \text{online network} \\ i = \text{current timestep} \end{flalign}\)

Sources:

• https://docs.pytorch.org/docs/stable/generated/torch.logical_not.html

• https://github.com/pytorch/pytorch/issues/48353

• https://en.wikipedia.org/wiki/Outlier

• https://github.com/Curt-Park/rainbow-is-all-you-need/blob/master/01.dqn.ipynb

@timeit
def train(self,
          env: Env,
          log_interval: int,
          epsilon: float,
          replay_buffer: "ReplayBuffer",
          loss_func: "_Loss",
          start_episode: int = 0) -> None:

    self.logger.info("Training the agent...")

    start_episode = start_episode if start_episode else 0
    best_reward = float('-inf')
    episode_tracker = []
    trackers = {
        "epsilon": [],
        "reward": [],
        "loss": []
    }

    cnt_frames = 0
    fig, axs = self._get_fig_axes(len(trackers))
    for episode in (pbar := tqdm(range(start_episode + 1, self.episodes),
                                 unit="episode",
                                 desc="Training",
                                 ncols=100,
                                 mininterval=5.0)):
        state, _ = env.reset()
        episode_rewards = []
        episode_loss = []
        while True:

            action = self.select_action(env, epsilon, state)
            next_state, reward, term, trunc, _ = env.step(action)
            done = term or trunc
            replay_buffer.store(Experience(state, action, reward, next_state, done))
            loss = self._train_q_online(replay_buffer, loss_func)

            episode_rewards.append(reward)
            episode_loss.append(loss if loss else np.nan)

            state = next_state

            cnt_frames += 1
            if done:
                break

        self._update_q_target(episode)
        epsilon = self._reduce_epsilon(epsilon)

        # Tracking
        episode_total_reward = np.sum(episode_rewards)
        episode_tracker.append(episode)
        trackers["epsilon"].append(epsilon)
        trackers["reward"].append(episode_total_reward)
        trackers["loss"].append(np.mean(episode_loss))
        best_reward = self._checkpoint(episode, episode_total_reward, best_reward,
                                       cnt_frames, trackers)

        self._draw_progress(pbar, fig, axs,
                            episode, log_interval, cnt_frames,
                            episode_tracker=episode_tracker,
                            plot_trackers=trackers)
    env.close()
    self.logger.info("Training finished!")

AgentDQN.train = train

def _train_q_online(self,
                    replay_buffer: "ReplayBuffer",
                    loss_func: "_Loss") -> float:
    if not replay_buffer.enough():
        return None

    self.logger.debug("Training Q-online:")

    states, actions, rewards, next_states, done = replay_buffer.sample_batch()
    # actions shape from [B] to [B, 1]
    # states [B, S]
    yhat = self.q_online(states).gather(dim=1, index=actions.unsqueeze(dim=1)).squeeze(dim=1)
    with torch.no_grad():
        y = rewards + self.gamma * self.q_target(next_states).max(dim=1).values * (1.0 - done.float())
    loss = loss_func(y, yhat)

    self.optimizer.zero_grad()
    loss.backward()
    self.optimizer.step()

    return loss.item()

AgentDQN._train_q_online = _train_q_online

def _update_q_target(self, episode: int) -> None:
    if episode % self.update_interval != 0:
        return

    self.logger.debug(f"Updating Q-target in episode: {episode}")

    self.q_target.load_state_dict(self.q_online.state_dict())
    self._set_mode(self.q_target, freeze=True)

AgentDQN._update_q_target = _update_q_target

@timeit
def run(self,
        env: Env,
        episodes: int = 10,
        output: bool = True,
        epsilon: float = 0.01,
        video_folder: str = None) -> list[float]:
    """
    Based on the implementation:
        https://github.com/Curt-Park/rainbow-is-all-you-need/blob/master/01.dqn.ipynb
    """
    if video_folder:
        self.logger.info("Recoding agent behavior!")
        env = gym.wrappers.RecordVideo(env, video_folder=video_folder)

    total_reward = 0
    episodes_total_reward = []
    for episode in range(episodes):
        state, _ = env.reset()
        while True:
            if output:
                show_environment(env.render())
            action = self.select_action(env, epsilon, state)
            next_state, reward, term, trunc, _ = env.step(action)
            state = next_state

            total_reward += reward
            if term or trunc:
                break
        self.logger.info(f"Total reward in episode {episode}: {total_reward}")
        episodes_total_reward.append(total_reward)
        total_reward = 0
    env.close()
    return episodes_total_reward

AgentDQN.run = run

In the code above, where we have the training, we can replace the code below by a more simple implementation, both works:

Actual (using gather):

def _train_q_online(self, ...
    # ...
    yhat = self.q_online(states).gather(dim=1, index=actions.unsqueeze(dim=1)).squeeze(dim=1)
    with torch.no_grad():
        y = rewards + self.gamma * self.q_target(next_states).max(dim=1).values * (1.0 - done.float())
    # ...

Simple (using indexing):

def _train_q_online(self, ...
    # ...
    q_values = self.q_online(states)
    batch_idx = torch.arange(q_values.size(0), device=q_values.device)
    yhat = q_values[batch_idx, actions]
    # ...

Stone Shaper

Now, we finish with the implementation of the epsilon decay present in the reduce_epsilon method, where, at each end of each episode or when the environment returns done, we reduce epsilon, as the agent tends to become better as it explores multiple scenarios. The formula is below, followed by the code:

\(\begin{flalign} \epsilon &= max(\epsilon_{min}, \epsilon × \epsilon_{decay}) \\ \epsilon_{decay} &= 0.99 \\ \end{flalign}\)

More schedules (linear, cosine, or adaptive decay) exist, but we’ll use the exponential decay, because it’s simpler and smoothly decaying.

def _reduce_epsilon(self, epsilon: float):
    return max(self.epsilon_min, epsilon * self.epsilon_decay)

AgentDQN._reduce_epsilon = _reduce_epsilon

The utility of a config_seed method, is to reproduce the same or very close result, it’s more determistic, we’ll use the method below:

Based on the implementation of seed_torch:

• https://github.com/Curt-Park/rainbow-is-all-you-need/blob/master/01.dqn.ipynb

seed = 42

def set_config_seed(seed: int):
    """
    Set seeds for reproduction across the used random number generators.
    """
    random.seed(seed)
    np.random.seed(seed)
    torch.manual_seed(seed)
    if torch.cuda.is_available():
        torch.cuda.manual_seed_all(seed)
        torch.backends.cudnn.benchmark = False
        torch.backends.cudnn.deterministic = True
    os.environ['PYTHONHASHSEED'] = str(seed)

set_config_seed(seed)

Let’s define the hyperparameters and configurations:

• size: The maximum capacity of ReplayBuffer.

• episodes: Number of training episodes, in the original paper, the frames are used as reference instead of episodes for training the agent.

• epsilon: The threshold used for the exploration-exploitation trade-off.

• gamma: If 0.99, it means that I want to give meaningful value to future rewards, example:

  • A reward 1 step ahead = 99% of its value (0.99^1)

  • A reward 10 steps ahead = 90.4% of its value (0.99^10)

  • A reward 50 steps ahead = 60.5% of its value (0.99^50)

  • A reward 100 steps ahead = 36.6% of its value (0.99^100)

  • Note: Similar to “Exponentially Weighted Moving Average”, but EWMA looks to the past.

• learning_rate: Used by the RMSprop.

• update_interval: The value 100 is heuristic, as there are typically ~156 frames per episode (in Pong), and in the paper they used 10,000 frames to update the Q-target, regularly, but I increased from 65 to 100, because as the agent becomes better, the number of frames may reduce.

• batch_size: 32, used in the paper, can be 32, 64, 128 and 256. Larger values are uncommon.

  • The paper “Small batch deep reinforcement learning”suggests that the batch size 8 can improve performance in the Atari environment.

  • If you want to use a larger batch size, try a “Learning Rate Scheduler”. There’s a rule of thumb to increase the learning rate so the neural network can escape local minima.

    • See Linear Scaling Rule in case you want to know more.

• interactive: For matplotlib to update the screen and show the graphs.

size = 50_000
episodes = 5_000
epsilon = 0.995
epsilon_min = 0.1
epsilon_decay = 0.9995
gamma = 0.99
learning_rate = 0.00025
update_interval = 65
checkpoint_min_episodes = 500
batch_size = 128
interactive = False
action_space_n = 3
log_interval = 500
fill_percent = 20
loss_func = nn.MSELoss()
env_name = "PongNoFrameskip-v4"
replay_buffer_bkp_path = "replay_buffer.pth"
replay_buffer_bkp_end_path = "replay_buffer_end.pth"

You can use the code below to test you decay of epsilon, before you start training, or use the formula below (derivation step by step):

\(\begin{align} \epsilon_{t} &= \epsilon_{0} \cdot \epsilon_{decay}^N \\ \frac{\epsilon_{t}}{\epsilon_{0}} &= \frac{\epsilon_{0} \cdot \epsilon_{decay}^N}{\epsilon_{0}} \\ \frac{\epsilon_{t}}{\epsilon_{0}} &= \epsilon_{decay}^N \\ \left(\frac{\epsilon_{t}}{\epsilon_{0}} \right)^{\frac{1}{N}} &= \epsilon_{decay}^{N \cdot {\frac{1}{N}}} \\ \left(\frac{\epsilon_{t}}{\epsilon_{0}} \right)^{\frac{1}{N}} &= \epsilon_{decay}^{{\frac{N}{N}}} \\ \left(\frac{\epsilon_{t}}{\epsilon_{0}} \right)^{\frac{1}{N}} &= \epsilon_{decay} \\ \text {where:} \\ \epsilon_t &= \text{epsilon end} \\ \epsilon_0 &= \text{epsilon start} \\ N &= \text{number of episodes} \end{align}\)

Example:

\(\begin{align} \left(\frac{0.1}{0.995} \right)^{\frac{1}{N}} &= \epsilon_{decay} \\ \left(\frac{0.1}{0.995} \right)^{\frac{1}{5000}} &\approx 0.99954 \\ \end{align}\)

In my case, I’m using 0.9995 in variable epsilon_decay, because I want to have a tail to the right, meaning that I want to exploit a little more.

test_epsilon = epsilon
test_epsilon_min = epsilon_min
test_epsilon_decay = epsilon_decay
test_epsilons = []

for i in range(episodes):
    if i % 500 == 0 or (i+1) == episodes:
        print(f"episode {i}:", test_epsilon)
    test_epsilon = max(test_epsilon_min, test_epsilon*test_epsilon_decay)
    test_epsilons.append(test_epsilon)

plt.title(f"$\\epsilon_{{decay}} = {epsilon_decay}$")
plt.ylabel(r"$\epsilon$ (epsilon)")
plt.xlabel("episodes")
plt.plot(np.arange(episodes), test_epsilons)
plt.show()

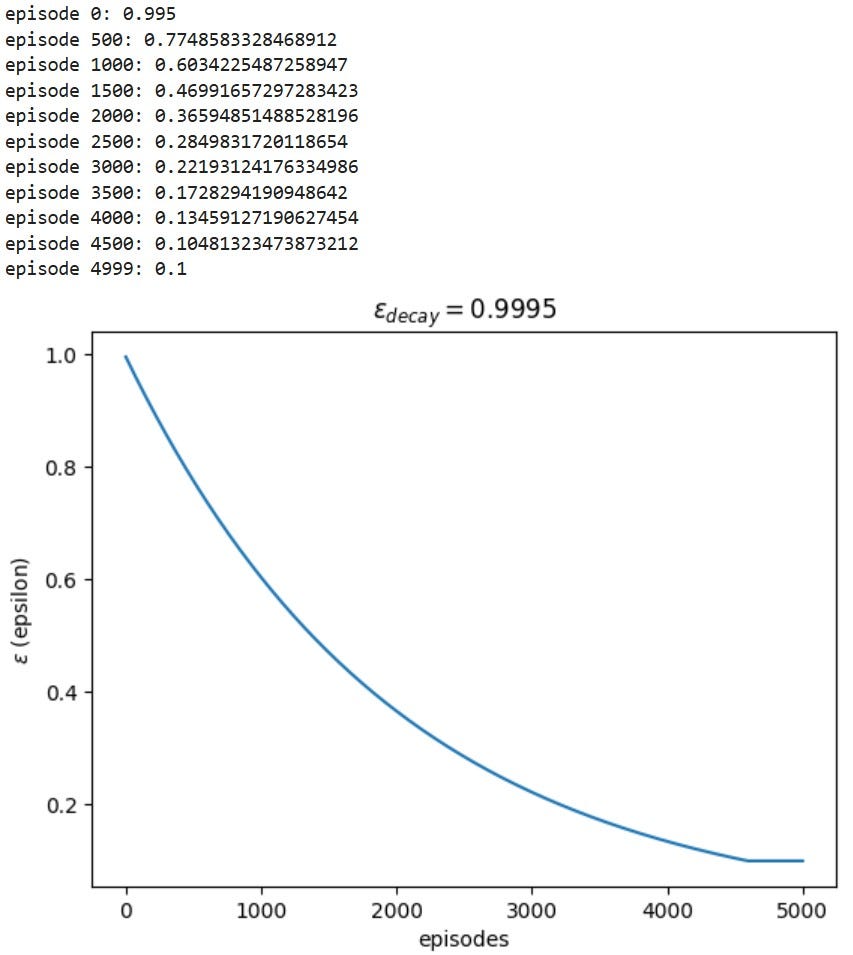

Output:

The AgentDQN.fill() method is responsible for filling the replay_buffer to avoid overfitting:

@timeit
def fill(self,
          env: Env,
          replay_buffer: ReplayBuffer,
          percent: int = 100) -> bool:
    assert percent >= 0, "percent must be >= 0"
    if percent == 0:
        self.logger.info("The replay buffer won't be filled!")
        return False

    target_count = int(replay_buffer.size * percent / 100)

    with tqdm(total=target_count,
              desc=f"Filling replay buffer to {percent}%",
              ncols=100,
              mininterval=5.0) as pbar:
        filling = lambda: pbar.n < target_count

        while filling():
            state, _ = env.reset()
            while filling():
                action = self.map_env_action(env.action_space.sample())
                next_state, reward, term, trunc, _ = env.step(action)
                done = term or trunc
                replay_buffer.store(Experience(state, action, reward, next_state, done))
                pbar.update(1)
                state = next_state
                if done:
                    break
    env.close()
    return True

AgentDQN.fill = fill

Start the training:

import traceback

try:
    load_checkpoint_episode = None
    env = make_wrapped_env(env_name, device)
    state, _ = env.reset()
    agent = AgentDQN(device=device,
                     episodes=episodes,
                     epsilon_min=epsilon_min,
                     epsilon_decay=epsilon_decay,
                     gamma=gamma,
                     update_interval=update_interval,
                     checkpoint_min_episodes=checkpoint_min_episodes,
                     action_space_n=action_space_n,
                     learning_rate=learning_rate,
                     interactive=interactive,
                     map_env_action=map_env_action,
                     map_model_action=map_model_action)
    replay_buffer = ReplayBuffer(size,
                                 state.shape,
                                 batch_size,
                                 device=device,
                                 map_env2model=map_env2model)
    if agent.fill(env, replay_buffer, percent=0):
        replay_buffer.save(replay_buffer_bkp_path)

    agent.train(env,
                log_interval,
                epsilon,
                replay_buffer,
                loss_func,
                start_episode=load_checkpoint_episode)
    replay_buffer.save(replay_buffer_bkp_end_path)
    print("rewards count per state (after training):", replay_buffer.cnt_rewards)
    agent.run(env, output=False, episodes=3, video_folder="./video_pong_1")
except Exception as ex:
    print(f"Training failed: {ex}")
    traceback.print_exc()

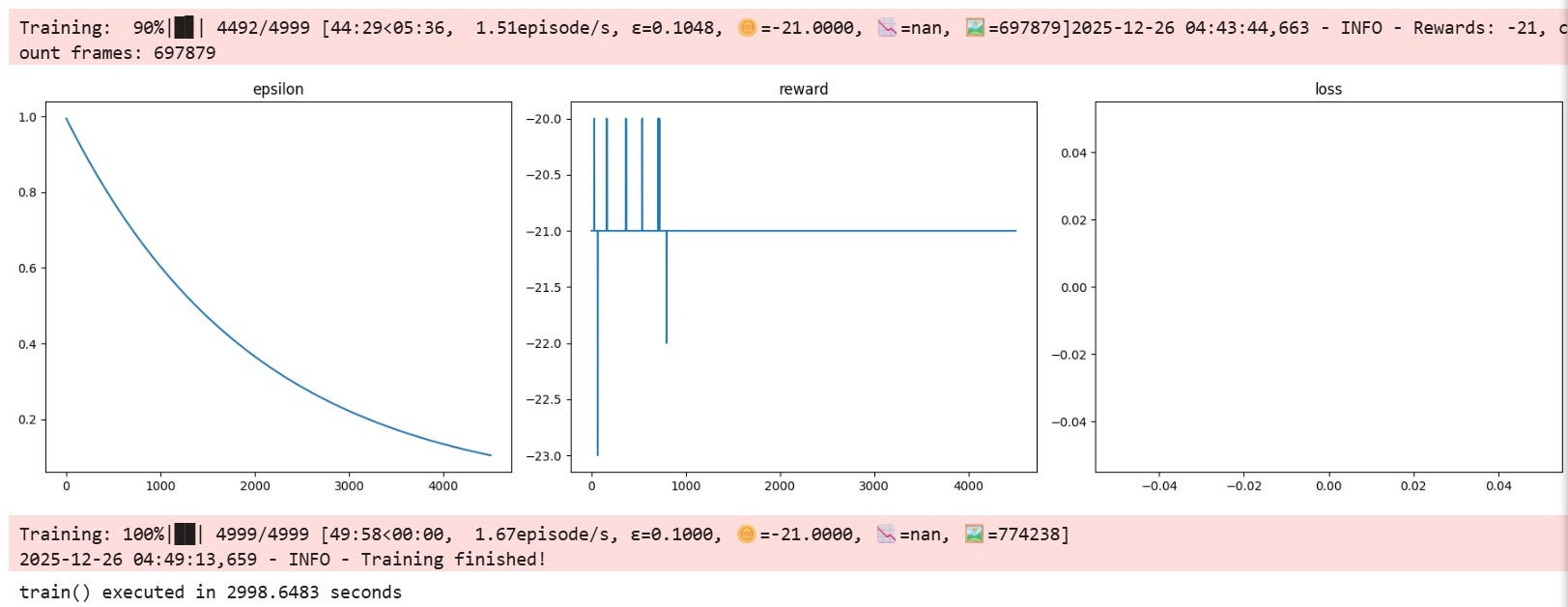

Training of the first configuration:

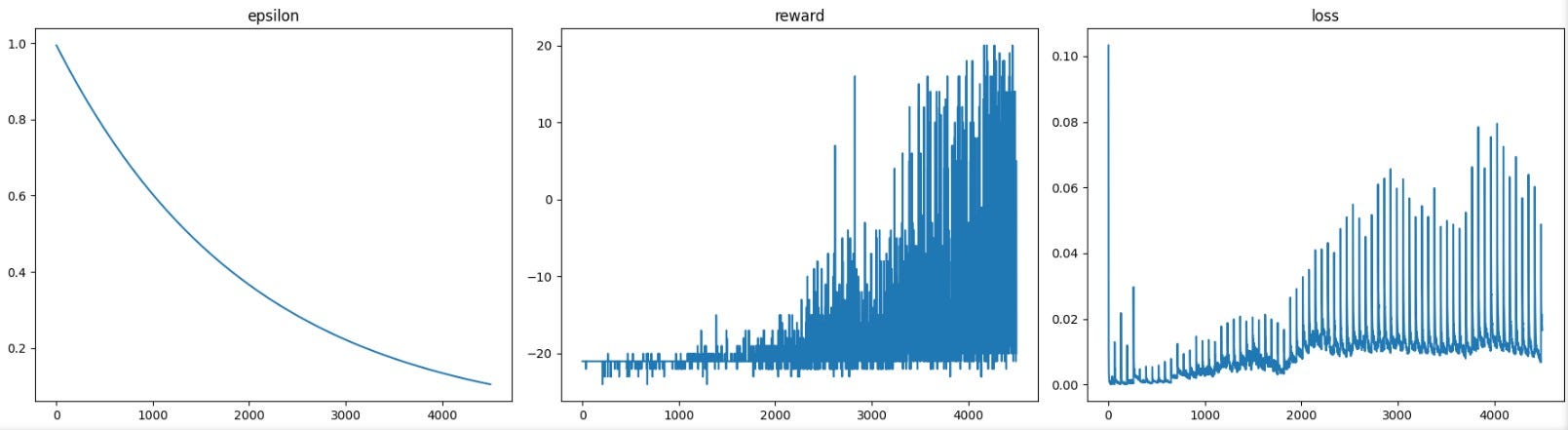

One of the results:

Now we’ll train using the BinaryReplayBuffer filled with 30%:

try:
    env = make_wrapped_env(env_name, device)
    state, _ = env.reset()
    agent = AgentDQN(device=device,
                     episodes=episodes,
                     epsilon_min=epsilon_min,
                     epsilon_decay=epsilon_decay,
                     gamma=gamma,
                     update_interval=update_interval,
                     checkpoint_min_episodes=checkpoint_min_episodes,
                     action_space_n=action_space_n,
                     learning_rate=learning_rate,
                     interactive=interactive,
                     map_env_action=map_env_action,
                     map_model_action=map_model_action)
    replay_buffer = BinaryReplayBuffer(size,
                                       state.shape,
                                       batch_size,
                                       device=device,
                                       map_env2model=map_env2model)
    if agent.fill(env, replay_buffer, percent=fill_percent):
        replay_buffer.save(replay_buffer_bkp_path)

    agent.train(env,
                log_interval,
                epsilon,
                replay_buffer,
                loss_func,
                start_episode=load_checkpoint_episode)
    replay_buffer.save(replay_buffer_bkp_end_path)
    print("rewards count per state (after training):", replay_buffer.cnt_rewards)
    agent.run(env, output=False, episodes=3, video_folder="./video_pong_2")
except Exception as ex:
    print(f"Training failed: {ex}")
    traceback.print_exc()

Output:

The implementation of BinaryReplayBuffer was too naive. This indicates that, when using the original ReplayBuffer, the agent was able to learn even though negative examples were much more frequent than positive ones. Over time, its performance improved and eventually reached this level.

Memory Palace of DQN in the memoryOS app

The Memory Palace is an old technique where you use a physical, imaginary, or virtual place to store your knowledge. This works because our mind remembers things better when making associations with concrete things, like your room or a past situation you don’t forget.

Below is the video showing the menus and the palace that I chose to store the DQN algorithm:

Next, there’s the room with its objects. On each object we’ll store this information. First, we look and become familiar with the objects in the room; in my case, I make annotations, then create a story using these objects with references from movies, animes, sports, culture, and past things that happened in my life (we can use AI to help with the references). One technique that is taught in the app is how to encode numbers in an efficient way; this is called the major method, where you transform numbers into letters. For this problem, some of them are shown below:

Mnemonic major system: 0 is sea🌐, 1 is tea☕, 3 is aim🎯, 4 is ear👂, 00 is SOS 🆘, 01 is seat💺, 10 is toes👣, 84 is fire🔥, 95 is ball🏀, 99 is Popeye 💪.

P.S.: In case you want to learn more about the major system, the app teaches this from 0 to 99, or you can use this Anki shared deck, maybe both.

1. Drawing Tablet - Preprocessing Pipeline

Agent 007 as RoboCop (James Bond) enters the environment (a maze on the drawing table) searching for a hidden treasure chest (reward).

1. To find the treasure he literally has to skip over 4 (ear) equal frames like hopscotch, where he gets the 5th frame which is different.

   1. Skipping frames - Why? Because most consecutive frames are nearly identical - skipping saves computation and we only need meaningful changes!

2. The robot pulls out a grayscale fish and waves it over the colorful frame, turning to black and white.

   1. Grayscale Transformation - Why? Color doesn’t add much information for most games, and it reduces data by 3x!

3. The robot looks through binoculars made of FIRE (84 = fire), reducing the frame’s size (like evaporating).

   1. 84×84 Resize - The view compresses down to exactly 84×84 pixels.

   2. Why? Smaller images = faster processing while keeping important details!

4. The robot uses his cat to stack all four frames together like a sandwich, creating 84×84×4.

   1. Frame Concatenation - Why? A single frame doesn’t show motion/velocity - we need temporal information (e.g., which direction is the ball moving?)!

   2. cat = concatenate in PyTorch/Keras for example.

2. Drawing Compass - Neural Network Architecture

The compass points to two identical twins named Q-online and Q-target. Then Tanjiro from Demon Slayer, enters performing Water Breathing forms:

Conv2D layers = Tanjiro’s sword drawing ripple patterns (convolutions detecting features)

ReLU activation = His real/true strikes that only let positive energy flow (negative values = 0) — just positive patterns! No negative feelings!

Then each layer he draws more complex patterns.

Each layer detects increasingly complex patterns: edges → shapes → game objects

Flatten & Dense - Tanjiro’s water forms flatten into a straight stream, then flow into a dense network forming a game controller, and then he plays using this controller (up, down, left, right and shoot).

Q-Online (active twin) = learns constantly, gets updated frequently, plays with Tanjiro.

Q-Target (stable twin) = Lazy twin, but firm foot on the ground, only updates occasionally to provide stable targets.

• Why twins? Without Q-target, training would be like “chasing your own tail” - the target keeps moving as you learn!

3. Plumb Line - Action Selection & Experience Replay

Imagine Mr. Krabs from SpongeBob hanging on the line with an horizontal albatross hat (Epsilon-Greedy), holding a BALL (95 = ball, starting exploration rate) with percent draw in it.

\(\epsilon = \text{epsilon symbol} = \text{vertical albatross, far away}\)

The Decision:

When Mr. Krabs misses the basket (he misses 95% of the time), he gambles at a casino maze (trying random actions) otherwise he counts his money greedily, argumenting about max return from Q-network twin with state (of your country) and Clapboard, after that we get the ACTION — When the agent acts, imagine 007 pressing a movie clapper board that says “ACTION!”.

• action = argmax Q-online(s, a) if rand() > epsilon else sample()

Imagine Kaa from The Jungle Book with casino slot machines along his side, very relaxed from the massage made by the end of the plumb line in his back, he’s a fat snake that swallows and stores memories (represent the replay buffer):

The snake swallows (s, a, r, s’, done) tuples:

• State (s) = the state of your country with one ear and a maze in it

• Action (a) = the movie clapper (ACTION)

• Reward (r) = gold coins

• Next state (s’) = another the state of your country with a hat as if complimenting

• Done = DONniE Yen (actor) with a red STOP sign

Why the fat snake? It stores thousands of experiences so we can learn from past mistakes randomly (breaks correlation between consecutive experiences)!

4. Construction Stone - Training Loop

Mini-Batch Sampling - The worker reaches into fat snake Kaa’s slot machines and pulls out a random handful of digested memories inside a mini BAd box (a mini-BAtch from the replay buffer).

• Why slot machines? It’s an analogy to doing random things, and random things, breaks correlations and improves learning stability!

• Why a box? It’s the analogy of the Batch!

Imagine the letter y as a tree. On the ground: an “=” sign, a coin before it, and a wheel with a big “+”.
A frog named Gamabunta with Popeye in top of his head with his discount coupon, terrified as a shuriken whizzes toward him.

Max the dog (walked by the Q-target twin) threw it.
The Q-target twin carries a backpack holding the State (from your country) and the next ACTION, both wearing hats given by the worker.

He’s already injured — a second shuriken is stuck in his back, thrown by the tea, who is poking his stick into “done” (the DONniE Yen actor).

• y = r + gamma × max Q-target(s’, a’) × (1 - done)

• Why this formula? It’s the Bellman equation - current Q-value should equal immediate reward + discounted future value!

\(\gamma = \textbf{gamma}\text{ symbol} = \textbf{Gama}\text{bunta frog}\)

The worker gets the y (it’s a tree) and the Q-online backpack containing the State (no hat), ACTION, and he writes this in the MSEN (old MSN Messenger), then the worker loses the message, it wasn’t sent, and he’s sad because of that.

• Formula:

  \(Loss = MSE(y, Q_{online}(s, a))\)

• Measures how wrong Q-online’s prediction is compared to target y

• Updates Q-online weights to minimize this error

Weight Copy - Now the worker with big toes (10) and asking for SOS (00) has walked 👣🆘 = 1000 steps. After those steps, he copies Q-online’s brain and replaces Q-target’s brain with it.

• Why? Keeps Q-target stable for a while, then updates it with improved knowledge!

5. Stone Chisel - Epoch Completion

The old Sculptor with a stone chisel appears after each episode.

Sum Epoch Rewards - He chisels the sum reward score into the stone monument, permanently recording progress.

Average Loss - Because he is smart and diversified his money in many buckets.

Epsilon Decay - As each episode passes, the Albatross get the BALL and flies away more and more, but when the Albatross and BALL is really far away, he just sits (01) and lay it’s eggs.

Over time, the Mr. Krabs explores less (because the Albatross is far away) and exploits more (gets greedier)

• Why decay? Early on, agent knows nothing so explore more. As it learns, exploit known good strategies more!

• Formula of decay:

  \(\begin{flalign} \epsilon &= max(\epsilon_{min}, \epsilon × \epsilon_{decay}) \\ \epsilon_{decay} &= 0.99 \end{flalign}\)

Problems in the process of implementing the paper

The paper implemented the training using frames, like updating the Q-target each 10k frames, but I implemented it using episodes (when terminated or truncated is true), so it was hard to find a way to synchronize the execution of the Q-target network between each episode and the recommended number of 10k in the paper. Another point is the generated graphs of rewards and losses over time: because the training is not very stable, there is a lot of difference between the runs. Even though the performance was pretty good and the rewards were increasing, a solution is to smooth the graphics using np.convolve, which we’ll use in the next article.

I tried to use torch.compile, but as of 2025-12-27, Triton does not work with Python 3.12.

Implementing things in a Jupyter Notebook can be easy to see the graphics and document the process, but for debugging it is kind of hard; it is better to use an IDE.

Conclusion

It’s an evolution of the Q-Learning algorithm, where instead of using a Q-table, which has the limitation of not scaling well to large or continuous state spaces, a neural network is used to approximate the function Q∗(s,a).

In traditional Q-learning, one workaround for continuous states was to use binning to discretize values, but in DQN this problem is solved more elegantly by using a neural network as a function approximator.

In the paper, the network was a Convolutional Neural Network (CNN) with ReLU activations. CNNs are useful here because they can extract spatial information from images, they are translation-equivariant, meaning they respond to where things are, and pooling layers add a small amount of position invariance, which helps generalization.

The input to the CNN was of shape 84×84×4. The preprocessing steps were:

• Repeat each action for 4 frames (3 in Space Invaders because skipping 4 made the laser invisible).

• Aggregate the rewards over those frames.

• Convert the last frame to grayscale and resize it to 84×84.

• Stack the last 4 processed frames together to capture motion, forming a single input with 4 channels.

The architecture uses two networks: the online network, which is updated at every training step, and a target network, which is a frozen copy updated only after a fixed number of steps (for example, every 10, 100, or 10,000 updates). The target network is not updated inside the replay buffer, but by copying the weights from the online network.

The replay buffer stores tuples (state, action, reward, next_state, done). Random samples from this buffer are used to decorrelate the data before training. For each sample, the target value is computed using the target network:

\(y = r + \gamma \max_{a’} Q_{target}(s’, a’) \cdot (1 - done)\)

Then the online network is trained by minimizing the loss:

\(MSE(y, \hat{y}) = \frac{1}{n} \sum_{i=1}^n(y_i - \hat{y}_i)^2\)

\(Loss = \text{MSE}\big(y\;, Q_{\text{online}}(s, a))\big)\)

The target network acts somewhat like a “stabilized teacher,” providing consistent targets so that the online network’s updates remain stable over time.

You can get the code on the repository link.
